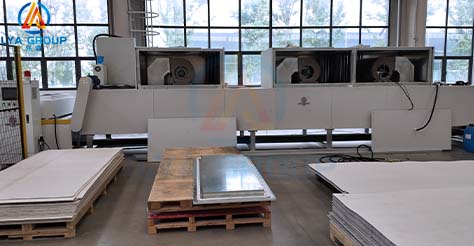

Our Flexible Tile Printing Line delivers up to 150m²/h with StarFire heads, printing flexible tile, PU stone, and calcium silicate board. It handles 1.5m-wide panels up to 100mm thick. Two operators run the 870m² line with 82.5kW power, ensuring high-speed, precision decoration for finished building materials.
Capable of printing finished building decoration materials such as flexible tile, PU stone, and calcium silicate board.
1. Flexible & PU stone printing equipment and inorganic, fire-free inks emit zero VOCs and have passed global environmental certifications such as the EU CE and US EPA. Customs clearance and production are risk-free, helping us secure high-end, environmentally friendly orders.
2. Specially optimized for different soft ceramic materials in Europe, America, and Southeast Asia, the products offer exceptional weather resistance. 1200dpi high-definition printing accurately reproduces diverse designs, meeting personalized customization needs.
3. We offer a complete printing line customization solution, from the main unit to the drying system. Our intelligent management system reduces labor costs by 40% and increases overall production efficiency by over 30%.
4. We directly supply customized inorganic, fire-free inks, supporting multiple color formulations.
5. We provide a one-stop solution for the entire supply chain of Flexible & PU stone printing equipment, solutions, and inks, ensuring comprehensive support from environmental compliance to production efficiency, helping global Flexible & PU stone companies maintain their market leadership.
Dust Removal→Spray White Primer→Drying→Printing→Drying→Surface Coating→Drying→Cooling
1.Ceramic & Porcelain Tiles – High-definition prints for floors, walls, and backsplashes.
2.Flexible Stone – Lightweight, bendable stone veneer with realistic textures.
3.PU Stone (Polyurethane Stone) – Durable, lightweight artificial stone panels for 3D wall cladding.
4.Glass & Metal Tiles – Customized prints for luxury interiors.
5.Custom Mosaic & 3D Tiles – Intricate patterns and textures.
1.We can according to customer requirements, such as shape, size, color, pattern and other details of the product to make.
2.We have rich experience in designing and making production lines are suitable for various customer requirements.
3.Perfect equipment supply system, constantly optimize equipment performance, make it more stable and convenient
4.Rich color matching technology makes the product look more natural, perfectly showing the natural texture and color.
5.Perfect after-sales service system, providing training and physical operation for production
| Size(mm) | 3450*2100*1650 |
| Weight | 1500kg |
| Print Head | StarFire |
| Number of printheads | 4/8/12-head configuration (up to 18 heads optional) |
| Inkjet technology | Piezoelectric Inkjet |
| Printing productivity | 4 heads:30-50㎡/h, 8 heads:60-100㎡/h, 12 heads:90-150㎡/h |
| Maximum Thickness | 100mm |
| Maximum Print Width | 1.5m |
| Color configuration | Red, yellow, blue, black, and so on |
| Ambient temperature | 20° to 30° |
| Relative humidity | 30%–60% |
| Working Area | 15*58=870m² |
| Power requirements | 82.5 kW |
| Labor Required | Two workers are needed |
| Warranty | 1 Year |
ZHENGZHOU LYA GROUP CO., LTD is a modern enterprise dedicated to the design and manufacturing of PU cultural stone, soft porcelain, intelligent production lines, and molds. Integrating R&D, production, and sales, the company boasts extensive practical experience in design and operations, delivering high-quality products and professional services to clients across the globe.
We provide customized, one-stop solutions tailored to each customer’s strategic development plans, product positioning, regional characteristics, and individual requirements. Our equipment and products have reached a wide range of markets, including the United States, Australia, Canada, New Zealand, Germany, France, Saudi Arabia, Italy, and beyond.
Guided by the principle of "Quality First, Customer Foremost," we are committed to building sincere partnerships, growing together with our clients, and achieving mutual success.
