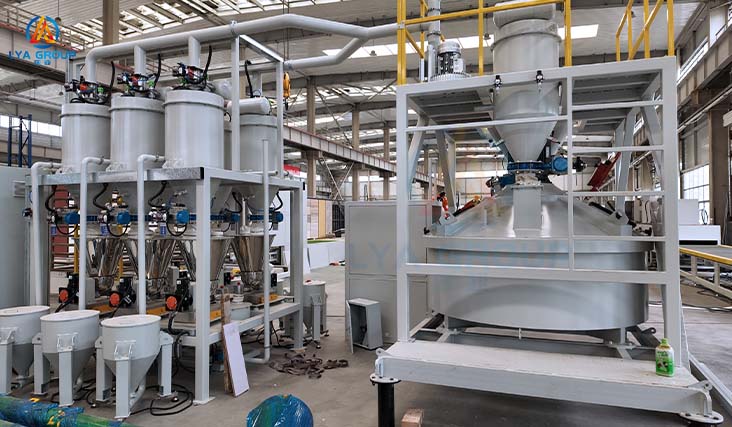

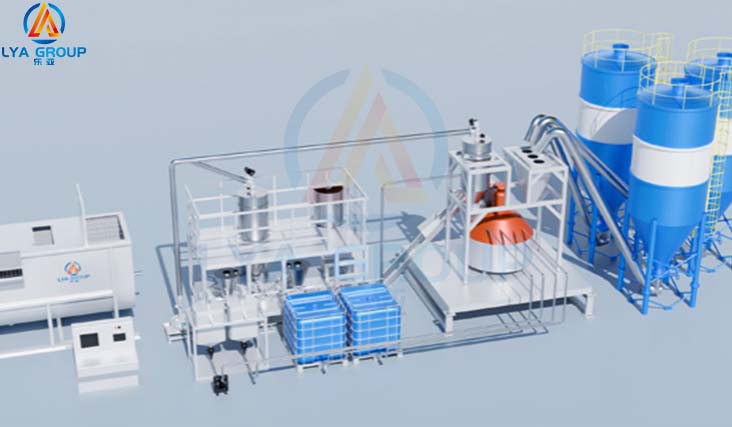

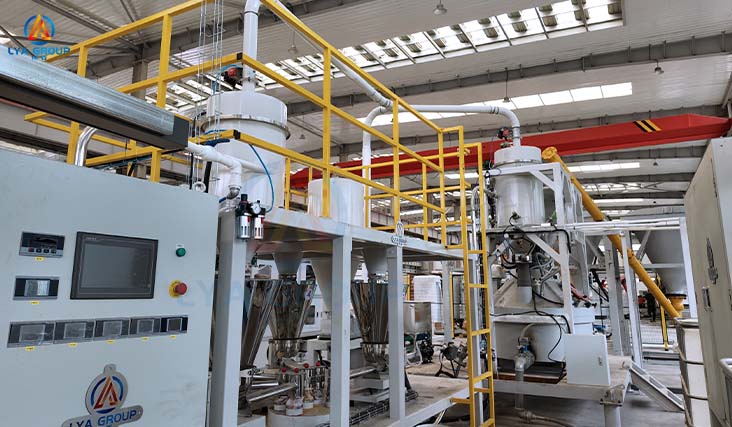

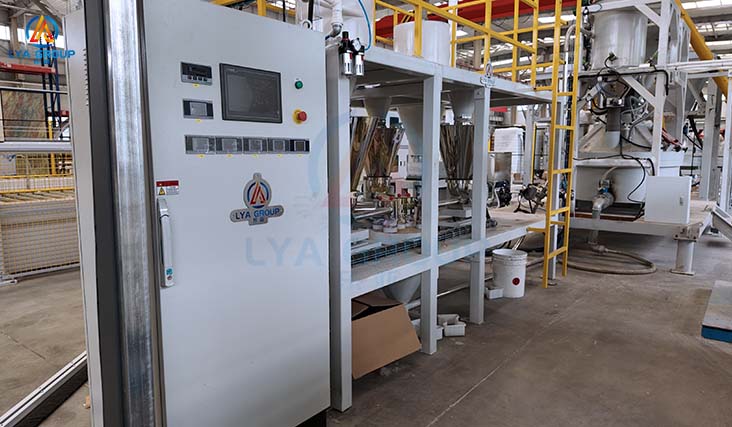

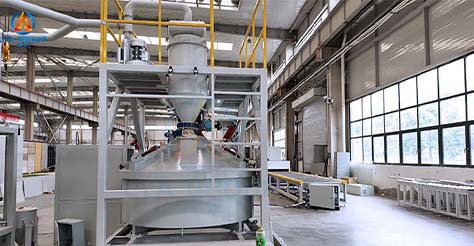

Our Flexible Stone Batching Line automates weighing, mixing, and liquid dosing for precise formulation. Features 10T silos, 5 raw material bins (50L each), fiber bin (200L), 1.54m³ horizontal mixer, and 250L planetary mixer. Restricted-access core processes protect IP, while multi-recipe support offers flexibility. Fully automated operation—zero to one labor required.
• Fully automated operation, reducing labor demand and minimizing raw material waste, which leads to higher
production efficiency and optimized production costs.
• The core processes are restricted to authorized personnel only, ensuring strict control of formulation technologies
and effectively preventing intellectual property or formula leakage.
• The system also supports multiple formulation options, offering flexible configuration to meet diverse production
requirements

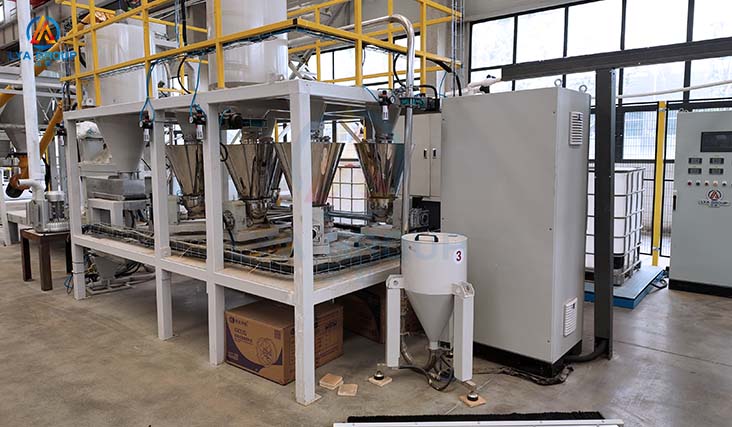

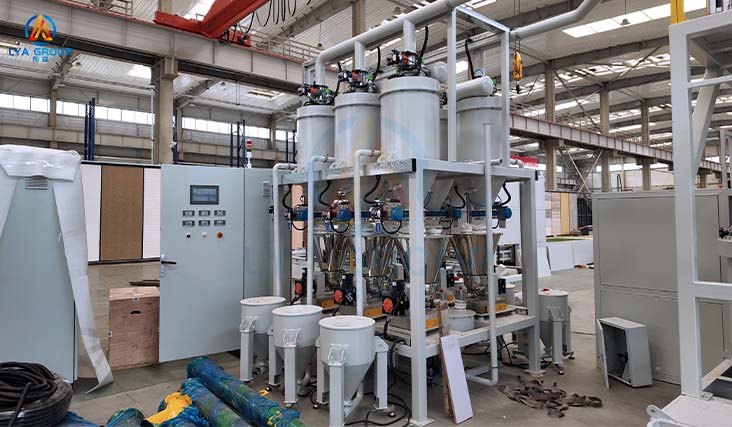

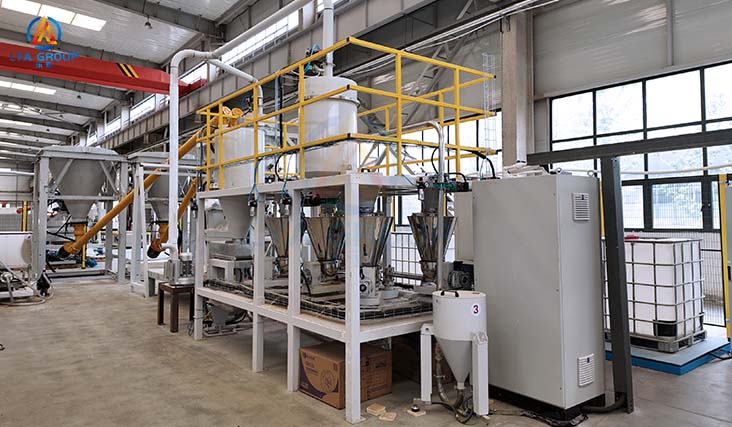

Our Powder Weighing & Supplying System automates raw material handling with 5 bins (50L each), weigh feeders (0.5kW) achieving ±5‰ accuracy, and pneumatic butterfly valves for flow control. Features Roots blower (3kW), conveyor pipeline, and discharge valves. The 3300×1800×2800mm platform ensures stable, precise powder delivery for flexible stone batching.

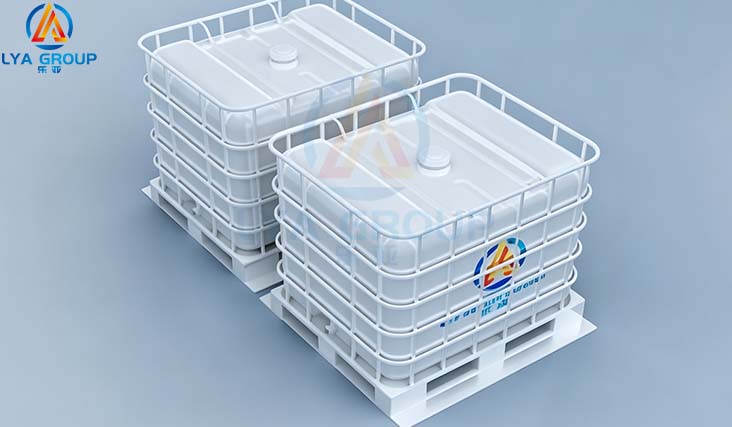

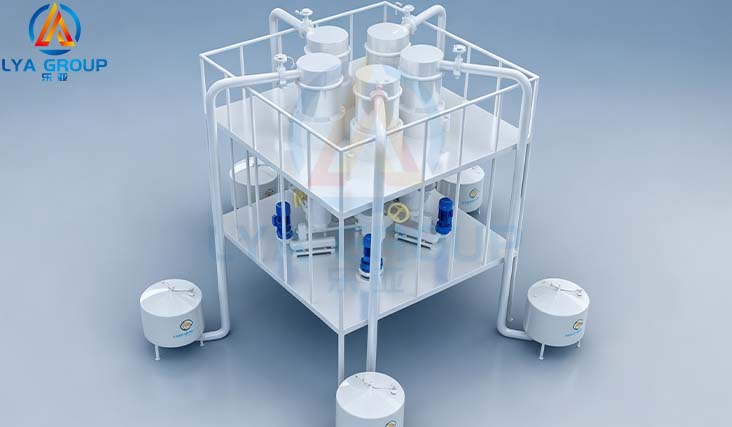

Our Automatic Liquid Raw Material Dosing System accurately meters water (0.75kW pump), emulsion (300L/min), additives (1500ml/min peristaltic), and fibers (200L bin with conveyor). Achieves ±1% liquid accuracy and ±5‰ fiber precision. Includes weighing hoppers, load cells, and elevating track—fully integrated for consistent, repeatable flexible stone formulations.
1.We can according to customer requirements, such as shape, size, color, pattern and other details of the product to make.
2.We have rich experience in designing and making production lines are suitable for various customer requirements.
3.Perfect equipment supply system, constantly optimize equipment performance, make it more stable and convenient
4.Rich color matching technology makes the product look more natural, perfectly showing the natural texture and color.
5.Perfect after-sales service system, providing training and physical operation for production processes and technologies.
| Product | Flexible Stone Batching Line |
| Brand name | LYA |
| Silos Storage Capacity | 10T each |
| Raw Material Bins | 5 (Capacity: 50Leach) |
| Fiber Feeding Bin | 1 (Capacity: 200L) |

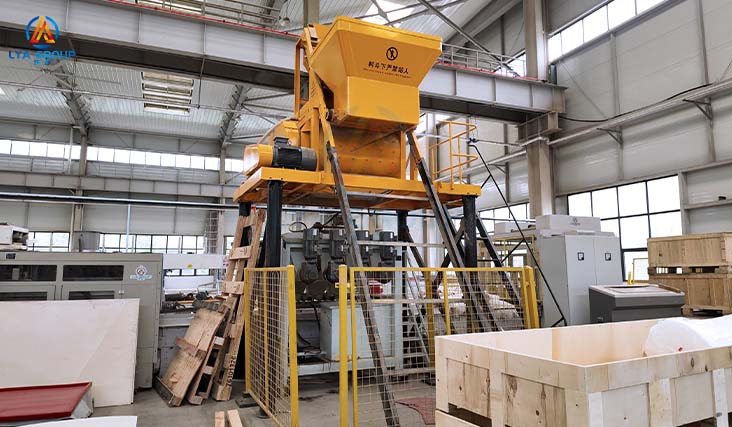

| Horizontal Mixer Capacity | 1.54m³ |

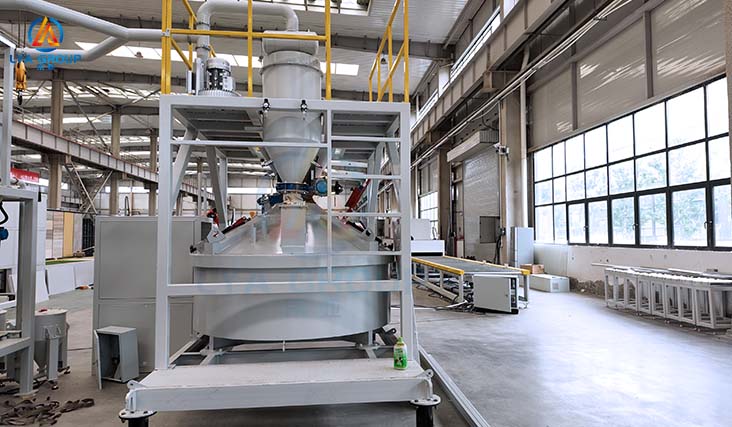

| Planetary Mixer Output Capacity(L) | 250L |
| Working Area | 17.5*6=105 ㎡ |
| Power Requirements | Raw material mixing -63.75kW |
| Labor Required | ZERO or ONE manpower is required |
| Warranty | 1 Year |
ZHENGZHOU LYA GROUP CO., LTD is a modern enterprise dedicated to the design and manufacturing of PU cultural stone, soft porcelain, intelligent production lines, and molds. Integrating R&D, production, and sales, the company boasts extensive practical experience in design and operations, delivering high-quality products and professional services to clients across the globe.
We provide customized, one-stop solutions tailored to each customer’s strategic development plans, product positioning, regional characteristics, and individual requirements. Our equipment and products have reached a wide range of markets, including the United States, Australia, Canada, New Zealand, Germany, France, Saudi Arabia, Italy, and beyond.
Guided by the principle of "Quality First, Customer Foremost," we are committed to building sincere partnerships, growing together with our clients, and achieving mutual success.
